產品描述
WSD7040AF is double channel high-side drivers with currentsense analog feedback for automotive applications, the devicesare designed to drive 12 V automotive grounded loads througha 3 V and 5 V
WSD7040AF integrates advanced protective functions such asload current limitation, overload active management by poweimitation and overtemperature shutdown.
A dedicated multifunction multiplexed analog output pindelivers sophisticated diagnostic functions including highprecision proportional load current sense,in addition to thedetection of overload and short circuit to ground, short to Vcand OFF-state open-load.
A sense enable pin allows OFF-state diagnosis to be disabledduring the module low power mode as well as external senseresistor sharing among similar devices.

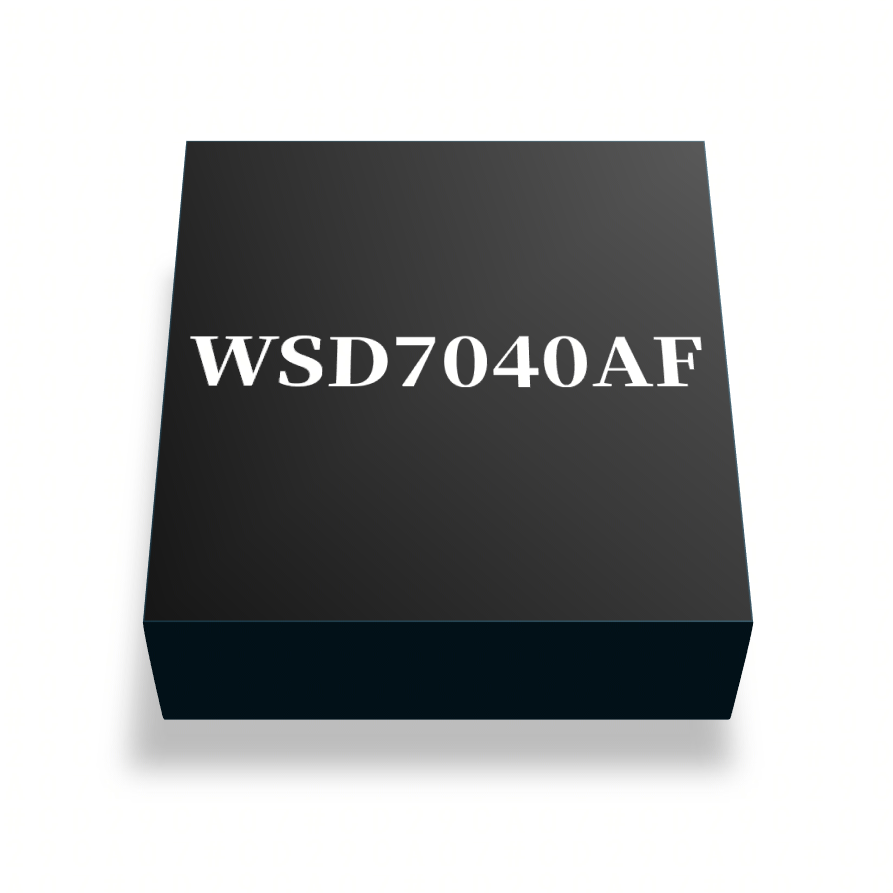

WSD7040AFis available in DFN5x6-14L package.
主要特點
Operating voltage range: 4.5V to 28V
Load current limitation
Output short-circuit protection
Standby current <2.0μA
On-state resistance Typ=46mΩ (per Ch)
Thermal shutdown indication
OFF-state open-load detection
Overyoltage clamp
Undervoltage protection
Multiplexed analog feedback of load current with high precision proportional current mirror
RoHS compliant and lead free
AEC-Q100 qualified
規格書
| 文檔名稱 | 文檔描述 | 下載 |
|---|---|---|
| WSD7040AF | 235.6KB |
